Project Code:
/*
Program: Rock_Paper_Scissors.ino
Copyright (C) 艹+豆, Inc. 2025

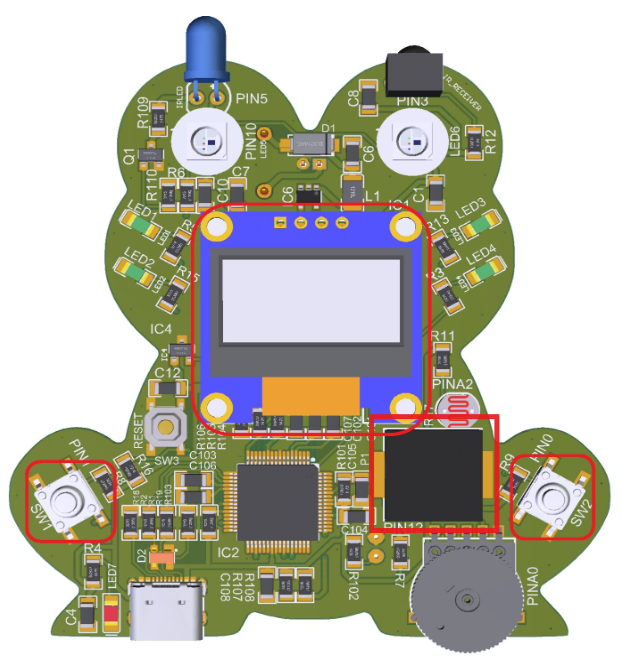

Play a simple Rock–Paper–Scissors game using the Frog board.
- On power-up, the OLED shows the game title and “Press any button”.
- When a button is pressed, the game “shuffles” through the Rock/Paper/Scissors
graphics on the left side of the OLED while playing tones on the piezo.
- After a short time, a random choice is selected and shown on the left, with
the name (Rock, Paper, or Scissors) centered on the right side of the display.
- When the user presses a button again (having previously released the button),
the game returns to the shuffling animation and chooses another random outcome.
Copyright (C) 艹+豆, Inc. 2025
*/
#include "1ST_Maker_Frog.h"
// ---------------------------------------------------------------------------
// Constants and configuration
// ---------------------------------------------------------------------------
// Rock, Paper, Scissors graphics
const uint8_t Rock64_MSB[] PROGMEM = {
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x00, 0x7F, 0xFF, 0xFF,
0xFF, 0xFF, 0xC0, 0x38, 0x38, 0x18, 0x03, 0xFF, 0xFC, 0x0F, 0x00, 0x00, 0xFE, 0x00, 0x01, 0xFF,
0xE0, 0x02, 0x0F, 0x81, 0xFF, 0x81, 0xF0, 0x7F, 0xC3, 0xE0, 0x3F, 0xE1, 0xFF, 0x87, 0xFC, 0x7F,
0x87, 0xF8, 0x7F, 0xE1, 0xFF, 0x8F, 0xFC, 0x7F, 0x0F, 0xFC, 0x7F, 0xE1, 0xFF, 0x8F, 0xFC, 0x3F,
0x0F, 0xFC, 0x7F, 0xE1, 0xFF, 0x8F, 0xFC, 0x3F, 0x0F, 0xFC, 0x70, 0x00, 0x00, 0x00, 0x00, 0x0F,
0x0F, 0xFC, 0x60, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0xFC, 0x61, 0xFF, 0xFF, 0xFF, 0xFF, 0xE1,
0x0F, 0xFC, 0x71, 0xFF, 0xFF, 0xFF, 0xFF, 0xF0, 0x0F, 0xFC, 0x70, 0xFF, 0xFF, 0xFF, 0xFF, 0xF0,
0x0F, 0xFC, 0x78, 0x3F, 0xFF, 0xFF, 0xFF, 0xF0, 0x0F, 0xFC, 0x7C, 0x1F, 0xFF, 0xFF, 0xFF, 0xF0,
0x0F, 0xF8, 0x7F, 0x01, 0xFF, 0xFF, 0xFF, 0xF0, 0x03, 0xF0, 0x3F, 0xC0, 0x00, 0x00, 0x1F, 0xF0,
0x00, 0x00, 0x1F, 0x80, 0x00, 0x00, 0x3F, 0xF0, 0x08, 0x07, 0x00, 0x00, 0x00, 0x1F, 0xFF, 0xF0,
0x0F, 0xFF, 0xC0, 0x1E, 0x01, 0xFF, 0xFF, 0xF0, 0x0F, 0xFF, 0xFF, 0xFF, 0x07, 0xFF, 0xFF, 0xF0,
0x0F, 0xFF, 0xFF, 0xFE, 0x1F, 0xFF, 0xFF, 0xF0, 0x0F, 0xFF, 0xFF, 0xFC, 0x3F, 0xFF, 0xFF, 0xF0,
0x0F, 0xFF, 0xFF, 0xF8, 0x7F, 0xFF, 0xFF, 0xF0, 0x0F, 0xFF, 0xFF, 0xF8, 0xFF, 0xFF, 0xFF, 0xF0,
0x0F, 0xFF, 0xFF, 0xF0, 0xFF, 0xFF, 0xFF, 0xF0, 0x0F, 0xFF, 0xFF, 0xF1, 0xFF, 0xFF, 0xFF, 0xF0,
0x0F, 0xFF, 0xFF, 0xF1, 0xFF, 0xFF, 0xFF, 0xF0, 0x8F, 0xFF, 0xFF, 0xE1, 0xFF, 0xFF, 0xFF, 0xF1,
0x8F, 0xFF, 0xFF, 0xE3, 0xFF, 0xFF, 0xFF, 0xF1, 0x87, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xE1,
0xC3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xE3, 0xE3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xC3,
0xE1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x87, 0xF0, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x0F,
0xF8, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x1F, 0xFC, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0x3F,
0xFE, 0x0F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF0, 0x7F, 0xFF, 0x87, 0xFF, 0xFF, 0xFF, 0xFF, 0xE0, 0xFF,
0xFF, 0xC1, 0xFF, 0xFF, 0xFF, 0xFF, 0x83, 0xFF, 0xFF, 0xF0, 0x3F, 0xFF, 0xFF, 0xFC, 0x0F, 0xFF,
0xFF, 0xFC, 0x07, 0xFF, 0xFF, 0xE0, 0x3F, 0xFF, 0xFF, 0xFF, 0x80, 0x1F, 0xF8, 0x01, 0xFF, 0xFF,
0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xC0, 0x01, 0xFF, 0xFF, 0xFF
};
static const uint16_t Rock64_MSB_WIDTH = 64;
static const uint16_t Rock64_MSB_HEIGHT = 64;
const uint8_t Paper64_MSB[] PROGMEM = {
0xFF, 0xFF, 0xFF, 0xFC, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xE0, 0x07, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xC3, 0xC3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF1, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xC7, 0x8F, 0xF1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x00, 0x0F, 0xF0, 0xC3, 0xFF, 0xFF,
0xFF, 0xFC, 0x38, 0x0F, 0xF8, 0x00, 0x7F, 0xFF, 0xFF, 0xF8, 0xFF, 0x1F, 0xF8, 0x18, 0x3F, 0xFF,
0xFF, 0xF1, 0xFF, 0x9F, 0xF8, 0x7E, 0x1F, 0xFF, 0xFF, 0xF1, 0xFF, 0x9F, 0xF8, 0xFF, 0x0F, 0xFF,
0xFF, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF, 0xFF, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF,
0xFC, 0x71, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF, 0xE0, 0x01, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF,
0xC1, 0xC1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF, 0x8F, 0xE1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xFF, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xE7,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0x83, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0x11,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8C, 0x78, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x80, 0x78,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x81, 0xF8, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x83, 0xF8,
0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x87, 0xF8, 0x1F, 0xF1, 0xFF, 0x9F, 0xF9, 0xFF, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x0F, 0xF0, 0xFF, 0x8F, 0xF8, 0x1F, 0xF1, 0xFC, 0x03, 0xF0, 0xFF, 0x8F, 0xF8,
0x1F, 0xE0, 0xFC, 0x03, 0xC0, 0x1F, 0x8F, 0xF8, 0x1F, 0x80, 0x3F, 0xFF, 0xCB, 0x3F, 0x8F, 0xF8,
0x1F, 0xDF, 0x3F, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0x0F, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0x80, 0x1F, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xFE, 0x03, 0xFF, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xF8, 0x1F, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xE0, 0xFF, 0xFF, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xC3, 0xFF, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0x87, 0xFF, 0xFF, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0x0F, 0xFF, 0xFF, 0xF8, 0x8F, 0xFF, 0xFF, 0xFF, 0x1F, 0xFF, 0xFF, 0xF8,
0x8F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xF1, 0x8F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xF1,
0x8F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xE1, 0xC7, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xE3,
0xE3, 0xFF, 0xFF, 0xFE, 0x7F, 0xFF, 0xFF, 0xC3, 0xE1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x87,
0xF1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xF8, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x0F,
0xFC, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0x3F, 0xFE, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x7F,
0xFF, 0x0F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF0, 0xFF, 0xFF, 0x83, 0xFF, 0xFF, 0xFF, 0xFF, 0xC1, 0xFF,
0xFF, 0xE0, 0xFF, 0xFF, 0xFF, 0xFF, 0x07, 0xFF, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFC, 0x1F, 0xFF,
0xFF, 0xFE, 0x03, 0xFF, 0xFF, 0xC0, 0x7F, 0xFF, 0xFF, 0xFF, 0x80, 0x1F, 0xF8, 0x01, 0xFF, 0xFF,
0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xC0, 0x03, 0xFF, 0xFF, 0xFF
};
static const uint16_t Paper64_MSB_WIDTH = 64;
static const uint16_t Paper64_MSB_HEIGHT = 64;
const uint8_t Scissors64_MSB[] PROGMEM = {
0xFF, 0xFF, 0xFF, 0xFC, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xE0, 0x07, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0x83, 0xC3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x8F, 0xE1, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0x1F, 0xF1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0x01, 0xFF,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xFC, 0x00, 0x7F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xF8, 0x7E, 0x3F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xF1, 0xFF, 0x1F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xE1, 0xFF, 0x1F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xE3, 0xFF, 0x1F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xE3, 0xFE, 0x3F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xC3, 0xFE, 0x3F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0xC7, 0xFC, 0x7F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x87, 0xFC, 0x7F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x8F, 0xFC, 0x7F, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x8F, 0xF8, 0x7F,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x1F, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x1F, 0xF8, 0xFF,
0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x1F, 0xF1, 0xE3, 0xFF, 0xFF, 0xFF, 0x1F, 0xF8, 0x3F, 0xF1, 0x01,
0xFF, 0xFF, 0x81, 0x1F, 0xF8, 0x3F, 0xE0, 0x38, 0xFF, 0xFE, 0x00, 0x1F, 0xF8, 0x7F, 0xE0, 0x78,
0xFF, 0xF8, 0x7C, 0x1F, 0xF8, 0x7F, 0xC1, 0xF8, 0xE0, 0x00, 0xFF, 0x1F, 0xF8, 0x7F, 0xC3, 0xF8,
0xC3, 0x81, 0xFF, 0x1F, 0xF8, 0xFF, 0x87, 0xF8, 0x87, 0xE1, 0xFF, 0x1F, 0xF8, 0xFF, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x1F, 0xF8, 0xFF, 0x8F, 0xF8, 0x1F, 0xF1, 0xFF, 0x1F, 0xE0, 0x7F, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x1F, 0x80, 0x1F, 0x8F, 0xF8, 0x1F, 0xF1, 0xFF, 0x1F, 0xC7, 0x3F, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0x8F, 0xF8,
0x1F, 0xF1, 0xFF, 0x1F, 0xFF, 0xFF, 0x8F, 0xF8, 0x1F, 0xF0, 0xFF, 0x1F, 0xFF, 0xF8, 0x1F, 0xF8,
0x0F, 0xE0, 0x7E, 0x1F, 0xFF, 0x80, 0x3F, 0xF8, 0x01, 0x00, 0x10, 0x3F, 0xFC, 0x07, 0xFF, 0xF8,
0x00, 0x0E, 0x00, 0xFF, 0xF8, 0x1F, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0xE0, 0xFF, 0xFF, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0xC3, 0xFF, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0x87, 0xFF, 0xFF, 0xF8,
0x1F, 0xFF, 0xFF, 0xFF, 0x0F, 0xFF, 0xFF, 0xF8, 0x1F, 0xFF, 0xFF, 0xFF, 0x1F, 0xFF, 0xFF, 0xF9,
0x0F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xF1, 0x8F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xF1,
0x8F, 0xFF, 0xFF, 0xFE, 0x3F, 0xFF, 0xFF, 0xE3, 0xC7, 0xFF, 0xFF, 0xFE, 0x7F, 0xFF, 0xFF, 0xE3,
0xC3, 0xFF, 0xFF, 0xFE, 0x7F, 0xFF, 0xFF, 0xC7, 0xE3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x87,
0xF1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x0F, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F,
0xF8, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0x3F, 0xFE, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x7F,
0xFF, 0x0F, 0xFF, 0xFF, 0xFF, 0xFF, 0xE0, 0xFF, 0xFF, 0x83, 0xFF, 0xFF, 0xFF, 0xFF, 0xC1, 0xFF,
0xFF, 0xE0, 0xFF, 0xFF, 0xFF, 0xFF, 0x07, 0xFF, 0xFF, 0xF8, 0x3F, 0xFF, 0xFF, 0xFC, 0x1F, 0xFF,
0xFF, 0xFE, 0x03, 0xFF, 0xFF, 0xC0, 0x7F, 0xFF, 0xFF, 0xFF, 0xC0, 0x1F, 0xF8, 0x03, 0xFF, 0xFF,
0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xE0, 0x07, 0xFF, 0xFF, 0xFF
};
static const uint16_t Scissors64_MSB_WIDTH = 64;
static const uint16_t Scissors64_MSB_HEIGHT = 64;
// ---------------------------------------------------------------------------
// Data structures and globals
// ---------------------------------------------------------------------------
struct Sprite {
const uint8_t* data;
uint16_t w;
uint16_t h;
};
Sprite sprites[] = {
{ Rock64_MSB, Rock64_MSB_WIDTH, Rock64_MSB_HEIGHT },
{ Paper64_MSB, Paper64_MSB_WIDTH, Paper64_MSB_HEIGHT },
{ Scissors64_MSB, Scissors64_MSB_WIDTH, Scissors64_MSB_HEIGHT }
};
// Set the number of picture sprites
const uint8_t NUM_SPRITES = sizeof(sprites) / sizeof(sprites[0]);
const char* SPRITE_NAMES[NUM_SPRITES] = {
"Rock",
"Paper",
"Scissors"
};
// Simple tones to play during shuffle (indexed by current sprite)
const uint16_t SHUFFLE_TONES[NUM_SPRITES] = {
440, 660, 880
};
// Final "ta-da" chord when result is shown
const uint16_t RESULT_TONES[3] = {
523, 659, 784 // C, E, G
};
// ---------------------------------------------------------------------------
// Game state and timing
// ---------------------------------------------------------------------------
enum GameState {
STATE_TITLE, // Waiting at title screen
STATE_SHUFFLING, // Cycling graphics
STATE_RESULT // Showing chosen result
};
GameState gameState = STATE_TITLE;
uint8_t currentSpriteIdx = 0; // Which sprite is shown while shuffling
uint8_t resultSpriteIdx = 0; // Which sprite was chosen as the result
unsigned long shuffleStartTime = 0; // When the current shuffle started
unsigned long lastShuffleFrame = 0; // Last time we advanced to the next sprite
const unsigned long SHUFFLE_INTERVAL = 200; // ms between frames
const unsigned long SHUFFLE_DURATION = 2500; // total shuffle time (ms)
// ---------------------------------------------------------------------------
// Function prototypes
// ---------------------------------------------------------------------------
// In C, it's good practice to declare functions before they are used.
void showTitleScreen();
void startShuffle();
void updateShuffle();
void showResultScreen(uint8_t spriteIndex);
void playShuffleTone(uint8_t spriteIndex);
void playResultChord();
// ---------------------------------------------------------------------------
// Setup and main loop
// ---------------------------------------------------------------------------
/**************************************************
* Function: setup
* Purpose: Initializes hardware, seeds randomness,
* shows the title screen, and plays a
* short "ready" beep.
**************************************************/
void setup() {
// Buttons use internal pull-ups; PRESSED means the pin reads LOW.
pinMode(BUTTON_ONE, INPUT_PULLUP);
pinMode(BUTTON_TWO, INPUT_PULLUP);
// Set LEDs as outputs and turn them off.
for (uint8_t i = 0; i < 4; i++) {
pinMode(LEDs[i], OUTPUT);
digitalWrite(LEDs[i], LOW);
}
// Piezo is an output for sound.
pinMode(PIEZO, OUTPUT);
// Initialize the OLED display; stay here forever if it fails.
if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
for (;;) { }
}
display.clearDisplay();
display.setTextColor(SSD1306_WHITE);
display.setTextSize(1);
display.setRotation(0);
// Use a potentiometer reading as a random seed so results vary each run.
randomSeed(analogRead(A0));
// Show the initial title screen.
showTitleScreen();
// Small "ready" beep so we know the board is alive.
tone(PIEZO, 880, 150);
}
/**************************************************
* Function: loop
* Purpose: Main program loop. Reads the buttons and
* runs the state machine: title, shuffling,
* and result.
**************************************************/
void loop() {
// Read buttons inline (no helper).
int b1 = digitalRead(BUTTON_ONE);
int b2 = digitalRead(BUTTON_TWO);
bool pressed = (b1 == PRESSED) || (b2 == PRESSED);
switch (gameState) {
case STATE_TITLE:
// From the title screen, any button press starts the shuffle.
if (pressed) {
startShuffle();
}
break;
case STATE_SHUFFLING:
// While shuffling, animation and timing are handled in updateShuffle().
updateShuffle();
break;
case STATE_RESULT:
// After showing the result, wait for:
// 1) button release, then
// 2) next button press to start another shuffle.
// Wait until any currently pressed button is released.
while (digitalRead(BUTTON_ONE) == PRESSED ||
digitalRead(BUTTON_TWO) == PRESSED) {
delay(10); // Small delay to prevent rapid looping
}
// Wait for the user to press a button again.
while (digitalRead(BUTTON_ONE) != PRESSED &&
digitalRead(BUTTON_TWO) != PRESSED) {
delay(10);
}
// Start another shuffle round.
startShuffle();
break;
}
}
/**************************************************
* Function: showTitleScreen
* Purpose: Draws the game title and a "Press any
* button" prompt on the OLED.
**************************************************/
void showTitleScreen() {
display.clearDisplay();
// Large title text on three lines.
display.setTextSize(2);
display.setCursor(0, 0);
display.println("Rock");
display.setCursor(0, 18);
display.println("Paper");
display.setCursor(0, 36);
display.println("Scissors");
// Small prompt at the bottom.
display.setTextSize(1);
display.setCursor(0, 56);
display.println("Press any button");
display.display();
}
/**************************************************
* Function: startShuffle
* Purpose: Begin a new shuffle animation sequence:
* reset timers, set the state, and show
* the first sprite with its tone.
**************************************************/
void startShuffle() {
gameState = STATE_SHUFFLING;
shuffleStartTime = millis(); // Record when shuffling started
lastShuffleFrame = shuffleStartTime;
currentSpriteIdx = 0; // Start at the first sprite
// Draw the first sprite.
display.clearDisplay();
display.drawBitmap(0, 0,
sprites[currentSpriteIdx].data,
sprites[currentSpriteIdx].w,
sprites[currentSpriteIdx].h,
SSD1306_WHITE);
display.display();
// Play the tone for this frame.
playShuffleTone(currentSpriteIdx);
}
/**************************************************
* Function: updateShuffle
* Purpose: Step the shuffle animation based on
* elapsed time. When the total shuffle
* duration is reached, pick and show
* a random result and play the chord.
**************************************************/
void updateShuffle() {
unsigned long now = millis();
// If enough time has passed, move to the next sprite.
if (now - lastShuffleFrame >= SHUFFLE_INTERVAL) {
lastShuffleFrame = now;
currentSpriteIdx = (currentSpriteIdx + 1) % NUM_SPRITES; // 0→1→2→0...
// Draw the new sprite.
display.clearDisplay();
display.drawBitmap(0, 0,
sprites[currentSpriteIdx].data,
sprites[currentSpriteIdx].w,
sprites[currentSpriteIdx].h,
SSD1306_WHITE);
display.display();
// Play a tone for this frame.
playShuffleTone(currentSpriteIdx);
}
// After SHUFFLE_DURATION ms, pick and show a random result.
if (now - shuffleStartTime >= SHUFFLE_DURATION) {
resultSpriteIdx = (uint8_t)random(NUM_SPRITES); // choose 0, 1, or 2
showResultScreen(resultSpriteIdx); // show the chosen sprite and name
playResultChord(); // play the result chord
gameState = STATE_RESULT; // move to result state
}
}
/**************************************************
* Function: showResultScreen
* Purpose: Draw the chosen sprite on the left side
* of the OLED and its name centered on the
* right half of the screen.
*
* Parameters:
* spriteIndex - which sprite (0, 1, or 2) to show
**************************************************/
void showResultScreen(uint8_t spriteIndex) {
// Safety: if index is out of range, wrap to 0.
if (spriteIndex >= NUM_SPRITES) {
spriteIndex = 0;
}
const Sprite& s = sprites[spriteIndex];
const char* name = SPRITE_NAMES[spriteIndex];
display.clearDisplay();
// Draw the image on the left half of the display.
display.drawBitmap(0, 0, s.data, s.w, s.h, SSD1306_WHITE);
// Compute where to draw the name so it is centered on the right half.
// 5x7 font uses 6 pixels per character (5 pixels + 1 space).
uint8_t nameLen = strlen(name);
int16_t textWidth = 6 * nameLen;
int16_t rightX = 64; // right half starts at x = 64
int16_t xText = rightX + (64 - textWidth) / 2;
int16_t yText = (SCREEN_HEIGHT - 8) / 2; // vertical center approx.
// Make sure we stay in the right half.
if (xText < rightX) xText = rightX;
display.setTextSize(1);
display.setCursor(xText, yText);
display.println(name);
display.display();
}
/**************************************************
* Function: playShuffleTone
* Purpose: Play a short beep during the shuffle
* animation, using a different frequency
* for each sprite.
*
* Parameters:
* spriteIndex - which sprite's tone to play
**************************************************/
void playShuffleTone(uint8_t spriteIndex) {
if (spriteIndex >= NUM_SPRITES) spriteIndex = 0;
tone(PIEZO, SHUFFLE_TONES[spriteIndex], 120);
}
/**************************************************
* Function: playResultChord
* Purpose: Play three short notes (a simple chord)
* when the result is shown.
**************************************************/
void playResultChord() {
tone(PIEZO, RESULT_TONES[0], 120);
delay(140);
tone(PIEZO, RESULT_TONES[1], 120);
delay(140);
tone(PIEZO, RESULT_TONES[2], 160);
delay(180);
}
*If you’re copying and pasting the code, or typing from scratch, delete everything out of a new Arduino sketch and paste / type in the above text.
